TECHNICAL SUPPORT

Access everything you need to know about all of Kesseböhmer USA’s products in one convenient location. Click on the + to expand the list to find your product.

All information is organized by product category and then by product. All the following info is for products manufactured for the US market. If you need additional information, please feel free to contact our Customer Service.

Pantries

Dispensa

Technical information and installation instructions for the Dispensa Pantry by Kesseböhmer.



Ordering instructions
  1. Order a frame set. Includes frame, runners, door brackets, and integrated soft closures.
  2. Choose your shelf sets. Each set includes two shelves.
  3. Accessorize to customize Dispensa for your unique needs
Shelf ordering notes
  • Small Frame: use 1-2 shelf sets
  • Medium Frame: use 2-3 shelf sets
  • Large Frame: use 3-4 shelf sets
  • Extra Large Frame: use 3-4 shelf sets
Downloads

Dispensa Pantry Installation

Dispensa SoftSTOPPro

Pullout Pantries: Features & Benefits

Tandem Solo

Technical information and installation instructions for the Tandem Solo.



Ordering Instructions
  1. Choose a frame set. Includes frame, runners, and mounting hardware.
  2. Order shelves for your Tandem Solo. Each set contains two shelves.
Notes
  • This product is ONLY intended to be used with frameless cabinets
  • Shelves should be positioned above or below door hinges
  • The minimum internal height is 51” for standard height frame and 71” for a taller frame
  • Standard angle hinges recommended
Downloads

Tandem Pantry

Technical information and installation instructions for the Tandem Pantry.



Ordering Instructions
  1. Choose a frame set. Includes frame, runners, door brackets, and integrated soft closers.
  2. Order 1 set of rear shelves per frame. Each set contains 4 shelves.
  3. Order 1 set of door shelves per frame. Each set contains 4 shelves.
Notes
  • Shelves should be positioned above or below door hinges
  • The minimum internal height is 60”
  • Frame can be mounted left or right
  • Standard angle hinges recommended



Downloads

Tandem Pantry by Clever Storage

Tandem Pantry Installation

Lavido

Technical information and installation instructions for the Lavido.



Ordering Instructions
  1. Order a runner. Includes runner mechanism
  2. Select a Support Post. Interior cabinet height must be larger than support post height.
  3. Order shelves to suit your style.
Notes
  • Shelves should be positioned above or below door hinges
  • 5-6 shelves are suggested for heights 59”-74”
  • Refer to StraightLine catalog for wooden inserts and accessories for ARENA Select shelves
Downloads

Technical information and installation instructions for the Tandem Pantry.



Ordering Instructions
  1. Choose a frame set. Includes frame, runners, door brackets, and integrated soft closers.
  2. Order 1 set of rear shelves per frame. Each set contains 4 shelves.
  3. Order 1 set of door shelves per frame. Each set contains 4 shelves.
Notes
  • Shelves should be positioned above or below door hinges
  • The minimum internal height is 60”
  • Frame can be mounted left or right
  • Standard angle hinges recommended



Downloads

Lavido Pantry Installation

Lavido Pantry Animation

Lavido by Clever Storage

Lavido Pantry Electric

Base Cabinets

Base Pullout

Technical information and installation instructions for the Base Pullout.



Ordering Instructions
  1. Order a frame set. Frame is required for all versions of Base Pullout shelving and accessories.
  2. Order shelves to suit your style. Choose from ARENA 2 or 3 shelf sets or Metal 2 or 3 shelf sets.
  3. Accessorize your Base Pullout. See below for accessory options.
Downloads

Base Pullout Installation

Wastebin Pullout

Technical information and installation instructions for the Wastebin Pullout.



Ordering Instructions
  1. Choose a frame to fit your cabinet. Choose a single or double pullout, available in 4 colors.
  2. Order wastebins and lids. Choose from 2 sizes in 3 colors.
  3. Accessorize your wastebin pullout with the Push-to-Open kit. See below for details.
Notes
  • For double Wastebin Pullout, please order only one lid–to be used in front bin only.
Downloads
Adjustment Documents

Wastebin Pullout with Push-to-Open Installation

Double Wastebin Pullout Installation

Wastebin Soft Close replacement

Portero

Technical information and installation instructions for the Portero.



Downloads

Portero Installation

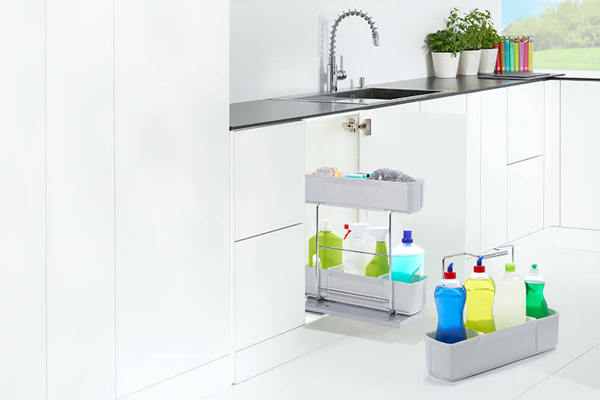

cleaningAgent

Technical information and installation instructions for the cleaningAGENT.

Each cleaningAGENT comes with:
  • Two pullout baskets
  • One portable basket with handle
  • Six dividers
  • One sponge basket
Downloads

Corner Cabinets

LeMans

Technical information and installation instructions for the LeMans.

Notes
  • The minimum internal cabinet height is 21 1/2”
  • Four-way adjustable block changes travel of shelves
  • Includes gauge for quick and easy installation
  • For LeMans Highboard, please order two complete LeMans sets
Ordering Instructions
  1. Order a complete LeMans set. Includes 2 shelves, 4 shelf support arms, mounting post, hardware, and measuring gauge.
  2. Order accessories. Customize the LeMans to suit your needs. See below for accessory information.
  3. Order an optional Highboard kit. Order 2 complete LeMans sets plus the Highboard kit for double the storage.
Downloads

LeMans II Installation

LeMans II Installation with Paper Template

LeMans by Clever Storage

LeMans Engineering

Revo

Technical information and installation instructions for the Revo.



Ordering Instructions
  1. Order a Revo hardware set. Includes bearing, all brackets, and post.
  2. Choose your shelves. 2 shelves per set. Available in 5 color/finish combinations.
Downloads

Corner Susans

Technical information and installation instructions for Corner Susans.

Notes
  • Select the right Corner Susan for your corner cabinet.
  • If you need a unit with a post, please order the LAZY SUSAN and order a post set and a shelf set (sold separately).
  • If you intend to install your Corner Susan on shelves, please order the SUPER SUSAN. You will not need to order a post set.
Ordering Instructions for Lazy Susan
  1. Order a post system for Lazy Susan. Choose between a tripod or a height adjustable post.
  2. Order shelves for Lazy Susan. 2 shelves per set.
Ordering Instructions for Super Susan
  • Super Susan sits on existing shelves. 2 shelves per set. Includes pre-mounted bearing with detent and cover cap.
Downloads

Wall Cabinets

YouK

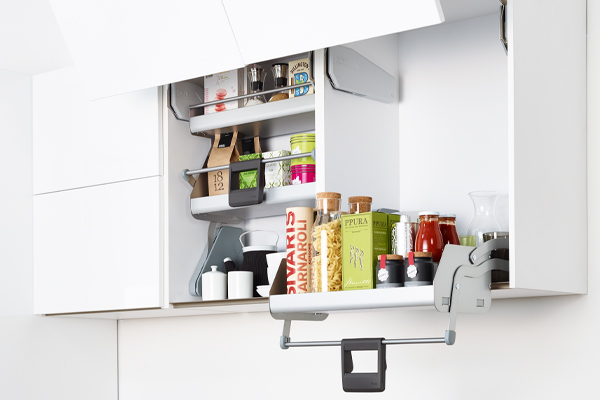

iMove

Technical information and installation instructions for the iMove.



Downloads

iMove

iMove Frameless Installation

iMove Faceframe Installation

Twister

Technical information and installation instructions for the Twister.



Notes
  • The Twister is sold as a complete set, including a post, hardware, and number of shelves indicated below:
    • Small- 2 shelves
    • Medium- 3 shelves
    • Large- 3 shelves
Downloads

Twister Wall Cabinet

Twister Animation

Spice Rack

Technical information and installation instructions for the Spice Rack.

Notes
  • Internal minimum (clearance) height for all cabinets: 24”
  • Internal minimum (clearance) depth for all cabinets: 11”
  • Spice Rack is applicable for left and right hand installation.
  • For best results, order 1 set of each size shelf set
Ordering Instructions
  1. Order a frame set. Includes frame and door brackets.
  2. (Optional) Order a runner set. Ball bearing set used for pullout function.
  3. Order 2 sets of door shelves per frame. Comes with 2 shelves per set.
Downloads

Spice Rack Installation

Wall Tandem Pantry

Technical information and installation instructions for the Wall Tandem Pantry.



Ordering Instructions
  1. Choose a frame set. Includes frame, door guide, and pivot brackets.
  2. Order 1 set of door shelves per frame. Each set contains 3 shelves.
Downloads

Lifters

Drawers

Shallow Drawers

Drawer ordering notes
  • Check width, depth, and height to ensure the best fit.
  • If drawer is deeper than 16 11/16”, please order depth extender, available in the following widths:
    • Small for internal widths up to 23 5/8 ”
    • Medium for internal widths up to 36”
    • Large for internal widths up to 47 1/4 ”

Deep Drawers

Installation Instructions and other helpful documents for the Dispensa.

– Installation instructions

– Troubleshooting guide

Backsplash Systems

Linero 2000

Installation instructions and other helpful documents for the Linero.

– Installation instructions

– Troubleshooting guide
